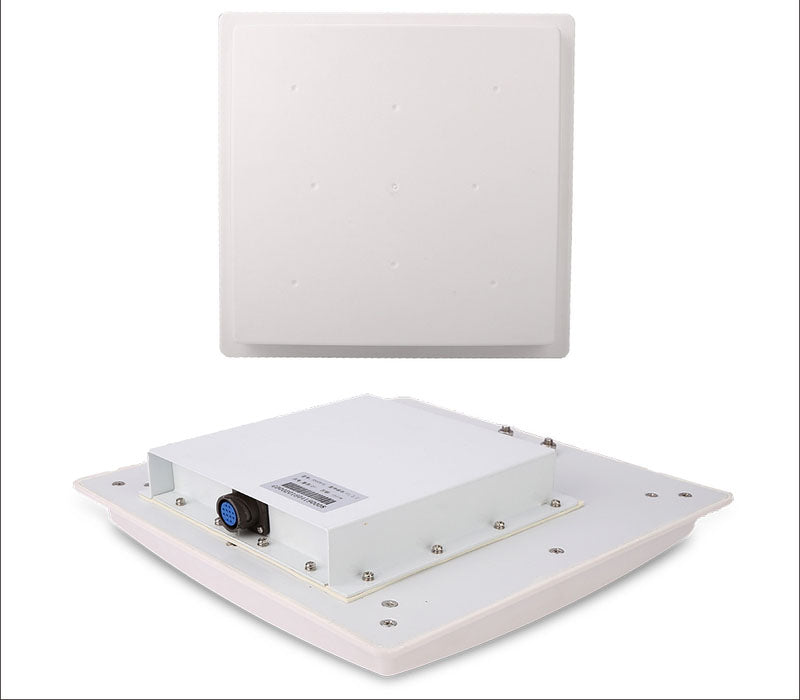

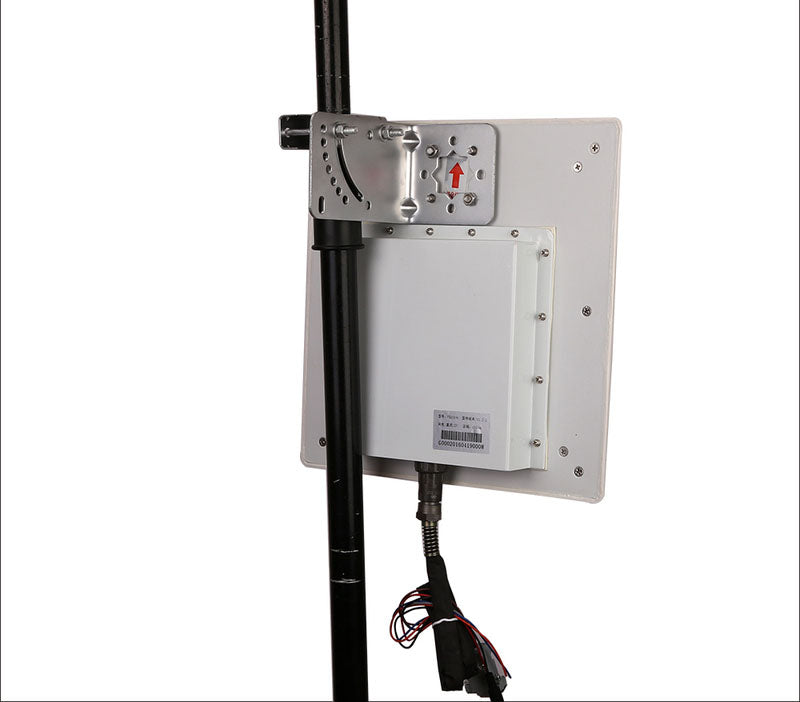

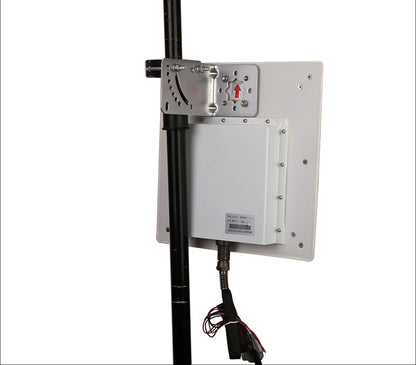

Z09 UHF RFID Integrated Reader
Z09 UHF RFID Integrated Reader
The Z09 is a high-end integrated UHF RFID reader built around an Impinj R2000 RF chip and a 9 dBi circularly polarized antenna, reaching a read range of up to 23 m. It supports EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C and delivers dense multi-tag reading of more than 400 tags/s. Onboard RS232 and 100 Mbps Ethernet simplify system integration, while the ABS engineering-plastic housing with lightning protection and an IP54 rating suits outdoor industrial use. Tags can be encrypted so other readers return garbled data, adding confidentiality.
Key Features:
-Impinj R2000 RF chip with -82 dBm receive sensitivity and read range up to 23 m
- Tested for continuous 60 x 24 h high-temperature burn-in operation
- Dense multi-tag reading: H-series >400 tags/s, L-series >200 tags/s
- Full SDK and API for easy RFID software integration
- Integrated RF chip architecture for stable performance in harsh, demanding environments
- Carrier-cancellation technology for more accurate, longer-range tag reading
- Enhanced noise suppression for reliable data capture
- High-precision received signal strength indicator (RSSI)
- Strong anti-interference performance with circuit-level lightning protection
- Rugged ABS engineering-plastic enclosure"
Specifications:
| Parameter | Value |
| Working Voltage | DC 12V |
| Peak Operating Current | 2.0A |
| Operating Temperature | -20°C to 65°C |
| Operating Humidity | 5%-95% RH, non-condensing |
| Storage Temperature | -30°C to +70°C |
| Tag Protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| Operating Frequency | 840-960 MHz |
| Supported Regions | China 1, China 2; US, Canada and other FCC regions; Europe and other ETSI EN 302208 regions (with and without LBT); Japan, Korea, Malaysia, Taiwan |
| Output Power | Software-adjustable in 1.0 dB steps, +5 dBm to +30 dBm |
| Output Power Flatness | ±0.2 dBm |
| Receive Sensitivity | -82 dBm |
| RF Port VSWR | ≤1.5 |
| Read Range | 0-23 m; depends on tag, transmit power and application environment |
| Multi-Tag Reading | ≥400 tags/s |
| Interface Baud Rate | 115200 bps |
| Operating Temperature Detection | Supported |
| Dense Reader Mode (DRM) | Supported |
| Antenna Connection Protection | Supported |
| Received Signal Strength Indicator (RSSI) | Supported |
| Antenna Type | 9 dBi circularly polarized antenna |
| Communication Interfaces | Standard RS-232, RJ45 (100 Mbps Ethernet); optional RS-485, 4G, Wi-Fi, Bluetooth |
| Buzzer | Included |
| Enclosure | ABS engineering-plastic housing |
| Dimensions | 280 x 280 x 75 mm |
| Ingress Protection | IP54 |
| Weight | 2.6 kg |
